Styling diagrams in vizzy

vizzy parses standard Mermaid styling inside mermaid fences. There is no new syntax to learn.

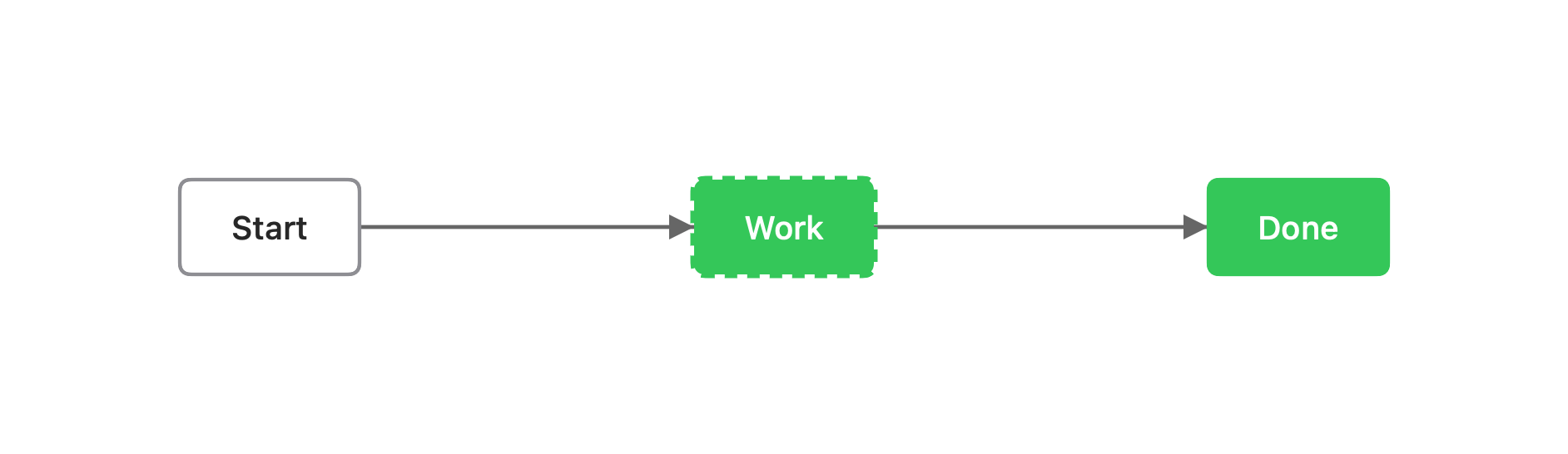

flowchart LR
  a[Start] --> b[Work] --> c[Done]
  classDef default stroke:gray
  classDef ok fill:green,stroke:green,color:white
  class c ok
  style b stroke-width:3px,stroke-dasharray:5 4
  b:::ok

What you can write

• style <id> <props>: style one node.
• classDef <name> <props> + class <id1>,<id2> <name>: define and apply a reusable class. classDef default styles every node. id:::name is shorthand for class.

Props (Mermaid names)

Prop	Effect
fill	Background color
stroke	Border color
color	Text color
stroke-width	Border width, e.g. 2px
stroke-dasharray	Dashed border, e.g. 5 4

Color values are standard palette names (preferred) or #hex. vizzy lint suggests replacing raw hex with a name or a vizzy.config token. Do not invent custom tokens.

Merge order

When several rules apply to the same node, the later one wins:

classDef default   <   class / :::   <   inline style   <   vizzy-fence override

Edge styling with linkStyle

linkStyle <i,j,… | default> stroke:…,stroke-width:…,stroke-dasharray:… styles flowchart edges, selected by their source order (0-based indices, or default for all edges). Colors resolve through the theme like node styles, and apply to both the line and its arrowheads:

flowchart LR
  a[Start] --> b[Work] --> c[Done]
  linkStyle 0 stroke:gray,stroke-width:2px
  linkStyle default stroke:green,stroke-width:1px

Limits

Mermaid styling only applies inside flowchart / graph fences. To color a node in a sequence, class, ER, or state diagram, use a vizzy-fence style override instead.
