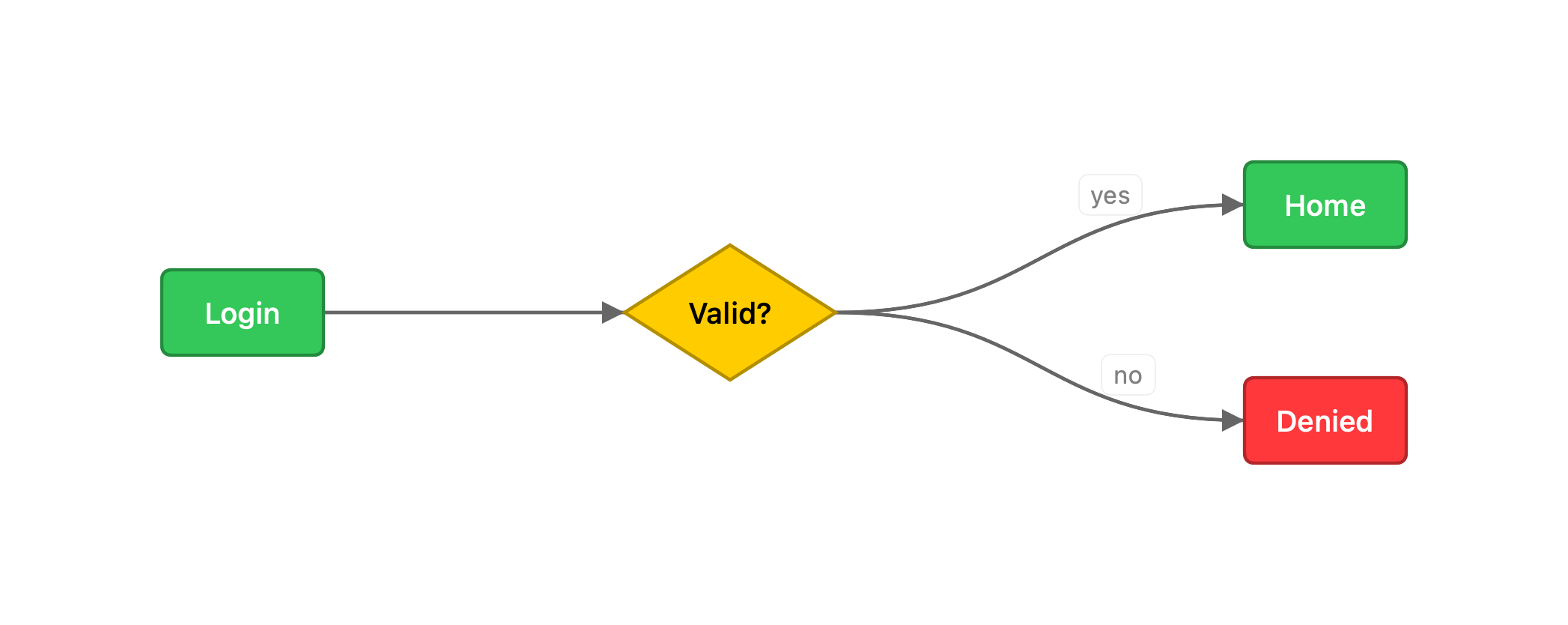

Colors and theming in vizzy

Styling is optional. Diagrams render well with none. When you do color a node, use a standard color name rather than a raw #hex. Names stay on-theme, and a single vizzy.config can retheme the whole repo at once. Do not invent custom tokens.

The palette

red   orange  yellow  green  mint   teal   cyan
blue  indigo  purple  pink   brown  gray   black  white

The palette also includes primary, secondary, and accent. A raw #hex works anywhere a name does, but vizzy lint suggests a name instead. If you need a specific shade, define it once in vizzy.config and reference it by name.

Re-theming a whole repo

To restyle every diagram at once, add an optional vizzy/vizzy.config that remaps what the names mean. The diagrams keep using plain names:

# vizzy/vizzy.config: optional palette overrides (name = #hex or color name)
red   = #E5484D
blue  = #0A84FF
green = #30A46C

Now every stroke:red / fill:red uses the new red. Lines starting with # are comments. Unknown or malformed lines are ignored. With no config file, the built-in palette is used.

Note

Never define $tokens in the diagrams themselves. Diagrams reference standard names, and the config (if present) is the single place that remaps them.

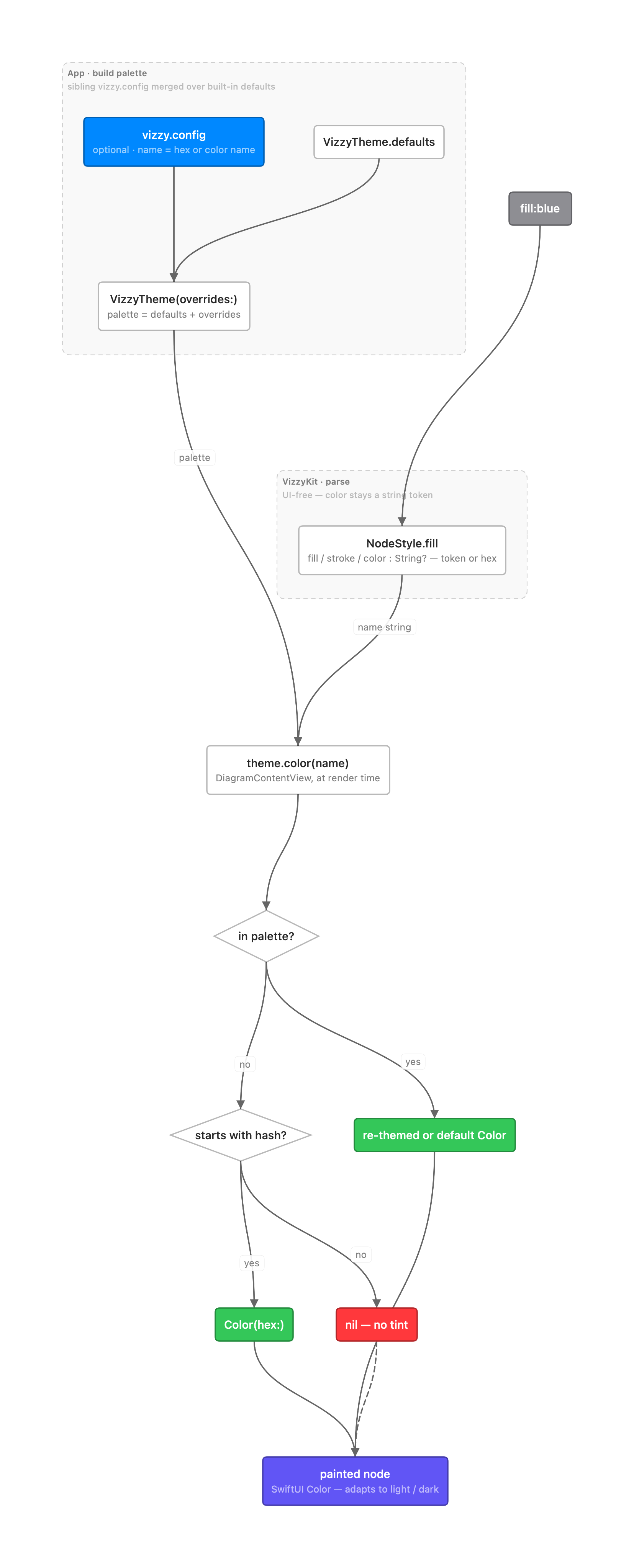

How a color name resolves

A color stays a plain name until it is drawn. VizzyKit parses the diagram and keeps fill / stroke / color as unresolved strings on each node. The app builds a palette by merging your vizzy.config over the built-in defaults, then resolves each name at render time. The order is: config override, then built-in default, then raw #hex, then none. The final SwiftUI color adapts to light and dark mode on its own.

Assets

Images are optional. You can reference files from vizzy/assets/, but no diagram needs them.

To turn a diagram into an image for a README or web page, use the vizzy CLI. It renders each diagram to a PNG in vizzy/assets/.
